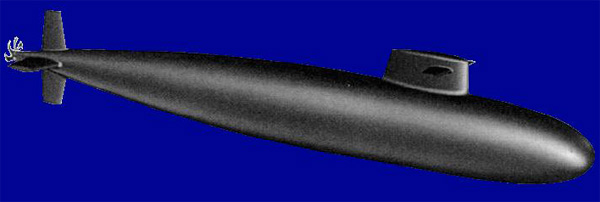

093型SSN的计算机生成图像。至少一艘093型潜水艇已经被制造，并且现在正在经受海试和评估。Computer-generated image of the Type 093 SSN. At least one Type 093 submarine has been built and is currently undergoing sea trial and evaluation.

The Type 093 is the second-generation Chinese nuclear attack submarine (SSN) built by Huludao Shipyard in Huludao, Liaoning Province. The Type 093 programme originally began in the early 1980s, and its existence was first reported by Pentagon in 2003. Russian Rubin Design Bureau is said to have been assisting China to develop the submarine since the mid-1990s. The first hull was reportedly launched between 2001~02, and has been undergoing sea trial since 2003. The submarine may not be ready for operational deployment for at least another few years.

093型是中国第二代核攻击潜水艇（SSN），由位于辽宁省葫芦岛（Huludao）的葫芦岛（Huludao）造船厂建造。093型计划最初在1980年早期开始，而且它的存在2003年被五角大楼首次报导。从1990年代中期以后俄国Rubin设计局据说已经协助中国发展潜水艇。第一艘潜艇根据传闻在2001~02年之间下水，而且已经从2003年以后经受海试。潜水艇可能没有准备好用于操作部署，至少再过数年之久。

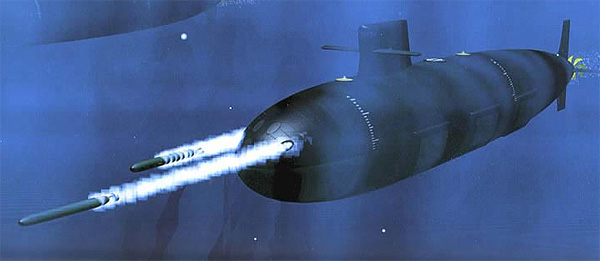

093型SSN的计算机生成图像。至少一艘093型潜水艇已经被制造，并且现在正在经受海试和评估。Computer-generated image of the Type 093 SSN. At least one Type 093 submarine has been built and is currently undergoing sea trial and evaluation.

PROGRAMME

China’s new generation nuclear submarine programme can be dated back to the early 1980s, when the PLA navy issued the requirement for a new nuclear attack submarine (SSN) as the successor to its first-generation Type 091 (NATO codename: Han class) nuclear attack submarine. The submarine development programme, codenamed Type 093, was officially approved by the PLA leaders in July 1983. However, the development programme only made very limited progress in its early stage due to enormous technical difficulties, especially the nuclear reactor and onboard weapon systems.

计划

中国新一代核潜艇计划能够回溯到1980年早期，PLA海军为一种新的核攻击潜水艇（SSN）发出需求，当做它的第一代091型（北约代号：汉级）核攻击潜水艇的后继型号。潜水艇发展计划，命名为093型，正式地在1983年7月被PLA领导层核准。然而，发展计划在它的早期阶段仅仅取得非常有限的进展，归于巨大的技术困难，尤其核反应堆和舰载武器系统。

The Type 093 was outperformed by the existing Western and Soviet nuclear submarines even before its blueprint could be finished. As a result, the submarine design team had to given up the original design to meet the revised requirements from the PLA Navy. The development was suspended until the mid-1990s, when St. Petersburg-based Rubin Central Design Bureau for Marine Engineering began to assist the Chinese design team in the Type 093 development. The Russian involvement in the programme has played an important role in reviving the Type 093 project, which finally made to the construction stage in the late 1990s.

在它的蓝图能够被完成之前，093型设计要求性能甚至优于已存有的西方和苏联核潜艇。结果，潜水艇设计组放弃最初的设计，去符合来自PLA海军修改的需求。发展被中止直到1990年中期，圣彼得堡（St. Petersburg）-建立从事船舶轮机工程的Rubin中央设计局开始在093型发展中协助中国设计组。俄国投入计划在使093型计划复活方面扮演重要角色，在1990年后期最后安排到建造阶段。

Exactly how much help the Chinese design team had received from Rubin Design Bureau is unknown, but it could potentially include a range of critical assistance, such as overall hull design, engine and machinery quieting, combat system design, and weapon system and countermeasures outfit. The revised Type 093 design is said to be of heavy Russian influence, with its general performance comparable to that of the Russian Victor-III class SSN originally introduced in the late 1970s by the Soviet navy.

准确的来讲中国设计组已经从Rubin设计局接受到多少帮助是未知的，但是它也许可能包括多种关键性的协助，像是总体艇外壳设计、发动机和机械静音，战斗系统设计，武器系统和对抗措施装备。修改的093型设计据说受到俄国巨大影响，它的一般性能比得上俄国Victor-III级SSN，最初在1970年被苏联海军引进。

The U.S. Navy intelligence and Pentagon predicted that the PLA navy would have around 3~4 Type 093 submarines by 2010, other sources suggested that eventual production could reach 6 to 8 units. The exact number to be built may well depends on the results of the ongoing sea trial for the first hull, which has been carried out at the PLA Navy’s Huludao submarine base since 2003.

美国海军情报部门和五角大楼预测PLA海军会在大约2010年之前有3~4艘093型潜水艇，其它消息来源认为最后生产可以达到6到8艘。要建造的准确数目可能充分依赖第一艘潜艇正在进行的海试结果，已经从2003年以后在PLA 海军的葫芦岛（Huludao）潜水艇基地进行。

DESIGN

The Type 093 is estimated to be 6,000~7,000t displacement when dived. If the submarine matches or exceeds the Russian Victor III class in performance, it would represent a significant advance in the PLA’s SSN technology over its first-generation Type 091 Han class. The Victor III class is rated as quiet as the U.S. 688 (Los Angeles) class SSN, and uses sophisticated sonar system, to include bow, flank-mounted and towed sonar arrays. The Victor III is reported to have a max dive depth of 400~600m, and the Type 093 is expected to be able to reach the same depth.

设计

093型被估计潜水排水量6,000~7,000吨。如果潜水艇匹配或超过俄国Victor III级性能，它会表现PLA的SSN技术的一个重要进步，超过它的第一代091型汉级。Victor III级设计的像美国688（洛杉矶）级SSN一样的安静，而且使用复杂的声纳系统，包括艇艏、侧面安装和拖曳声呐阵列。Victor III级据说最大潜深400~600米，093型被期望能够达成相同的深度。

WEAPONS

The Type 093 is expected to be armed with 533mm and 650mm torpedo tubes which can launch Russian or indigenous wire-, acoustic, and wave-homing torpedoes as well as anti-ship and land attack cruise missiles. The capability to launch the land-attack cruise missile (LACM) would enable the PLA Navy to have limited global naval power projection for either nuclear or non-nuclear weapons.

武器

093型被期望去装备使用533毫米和650毫米鱼雷发射管，能发射俄国或自行研制的线制导、声音和尾流归航鱼雷，反舰和对陆攻击巡航导弹。有能力发射对陆-攻击巡航导弹（LACM）将会使PLA海军能够拥有有限的全球海军力量，投射任一的核或非核武器。

    以下为：2009年4月4日（Last update: 4 April 2009）更新部分

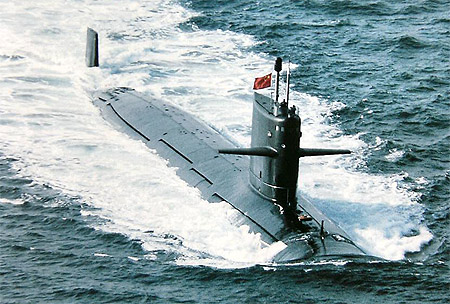

093型（中国互联网）
Type 093 (Chinese Internet)

The Type 093 (or 09-III, NATO reporting name: Shang class) is the PLA Navy’s second-generation nuclear-powered attack submarine (SSN), introduced to replace the existing force of five Type 091 (Han class) SSNs. The submarine was designed by the Wuhan 2nd Ship Design institute (also known as 719 Institute) in Wuhan, Hubei province and built by Bohai Shipbuilding Heavy Industry Co. Ltd. (previously Bohai Shipyard) in Huludao, Liaoning Province. So far two boats have reportedly been launched.

中国093型（或09-III，北约报告命名：商级）是PLA海军第二代核动力攻击潜艇（SSN），采用去代替现有的海上力量五艘091型（汉级）SSN。潜艇由位于湖北省武汉的武汉第二舰船设计所（也即是719所）设计，由位于辽宁省葫芦岛的渤海造船重工业公司公司（先前渤海造船厂）建造。到现在为止二艘潜艇根据传闻已经下水。

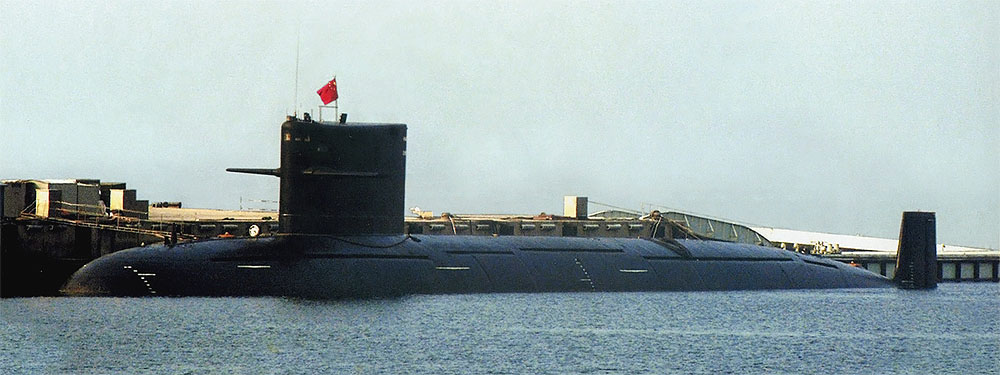

093型（中国互联网）
Type 093 (Chinese Internet)

Construction of the Type 093 began in 1995~96 at the Bohai Shipyard under tight security and high secrecy. The first-of-class submarine was launched in December 2002. After a sea trial that lasted for four years, the submarine was finally commissioned by the PLA Navy North Sea Fleet in December 2006. A second hull was launched in late 2003 and possibly commissioned in 2007. The existence of the submarine project was first reported by the Pentagon in 2003. The U.S. Navy intelligence and Pentagon predicted that the PLA Navy could have 3~4 submarines by 2010, while other sources suggested that eventual production could reach 6~8 boats.

093型的建造在严格安全和高度保密下由渤海造船厂从1995~96年中开始。该级第一艘潜艇在2002年12月下水。在持续四年海试之后，潜艇最后在2006年12月进入PLA海军北海舰队服役。第二艘在2003年后期并可能在2007年服役。潜艇计划的存在被五角大楼在2003年首次报告。美国海军情报和五角大楼预测PLA海军2010年之前可能有3~4艘潜艇，同时其他的消息来源认为最后的制造数量可以到达6~8艘。

During the exhibition at Beijing’s Military Museum of Chinese People’s Revolution in late July to mark the 80th anniversary of the People’s Liberation Army (PLA), a scale model and some hazy photos of the Type 093 SSN were presented to the public. Later, Beijing-based Modern Ships magazine published in its August issue the first clear photo of the long-anticipated submarine.

七月下旬在北京中国人民革命军事博物馆中国人民解放军（PLA）建军第80周年展览会上，一件比例模型和一些093型SSN的一些模糊的相片展示给观众。稍后，北京-成立的现代舰船杂志出版在八月首次发表了长期-预测的潜艇的清晰相片。

Design

The Type 093 is estimated to be 6.000~7,000t displacement when dived. As revealed by the submarine model and Modern Ships photograph, the submarine features a water-drop shape hull, with a pair of fin-mounted hydroplanes and four diving planes. The submarine is fitted with sophisticated sonar systems, including bow-mounted sonar and H/SQC-207 flank-mounted sonar. Three flank-mounted sonar arrays are clearly visible on the hull of the submarine.

设计

093型据估计排水量6.000~7,000吨。如同潜艇模型和现代舰船的相片，潜艇的特征是水滴形外壳，采用一对鳍安装水平舵和四翼十字尾舵。潜艇配备有复杂的声纳系统，包括艇艏声纳和H/SQC-207舷侧声纳。三套舷侧声纳阵列清楚地在潜艇的外壳上看到。

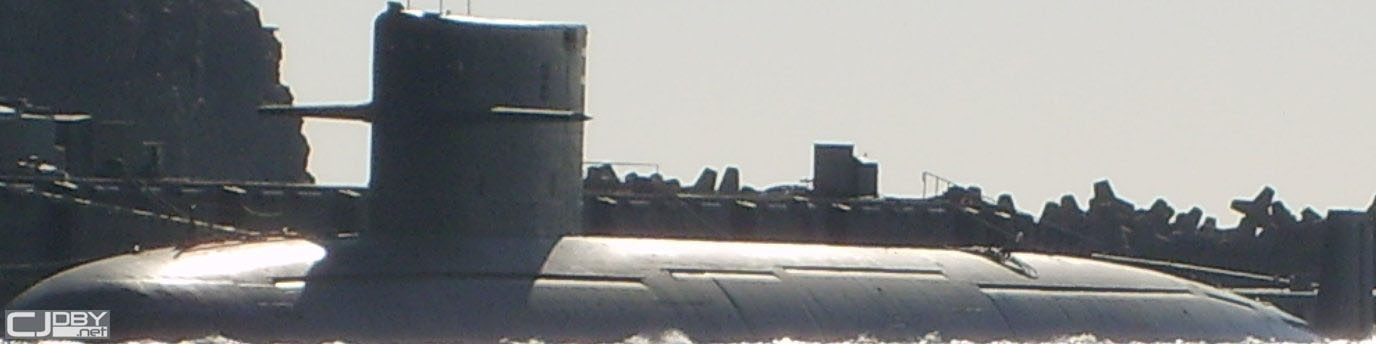

093型（中国互联网）
Type 093 (Chinese Internet)

The Type 093 submarine has six 533mm bow torpedo tubes (4 above, 2 below), and is presumed to be equipped with a range of anti-submarine and anti-surface vessel torpedoes of wire-, acoustic- and wake-homing, based on both Chinese and Russian designs. The torpedo tubes can also be used to launch Chinese indigenous YJ-82 anti-ship missiles. Some reports suggested the capability of launching land-attack cruise missiles (LACM), but this cannot be confirmed.

093型潜艇有六具533毫米艇艏鱼雷管（4具上方，2具下方），而且推测装备多种反潜和反水面舰艇线导-、声纳-、尾流归航鱼雷，基于中国和俄国两者设计。鱼雷管也能用来发射中国本国的YJ-82反舰导弹。一些报告认为有能力发射对陆-攻击巡航导弹（LACM），但是这不能够确认。

潜艇目录（Shiplist）

Specifications

Displacement: (Dived) 6,000~7,000t
Torpedo Tubes: 6 X 533mm

规格

排水量： （潜水）6,000~7,000 吨
鱼雷发射管： 6 X 533 毫米

Last update: 4 April 2009
最后更新：2009年4月4日
