Harbin BZK-005

中国哈尔滨BZK-005型高空长航时无人机

Date:2017-06-25 Source:wikipedia By:Globalmil Viewed:



Role HALE (high altitude long endurance) UAV
National origin PRC
Manufacturer Harbin Aircraft Industry (Group) Co., Ltd.
Designer Beijing University of Aeronautics & Astronautics
角色    HALE(高空长航时)无人机
国籍    来自中华人民共和国
制造商  哈尔滨飞机工业(集团)有限公司
设计    北京航空航天大学设计学院


The BZK-005 high-altitude, long-range UAV is a reconnaissance aircraft designed by Beijing University of Aeronautics & Astronautics and Harbin Aircraft Industry (Group) Co., Ltd. It is used by the Chinese Navy.
BZK-005型高空,远程无人机是由北京航空航天大学和哈尔滨飞机工业(集团)有限公司设计的侦察机,由中国海军使用。

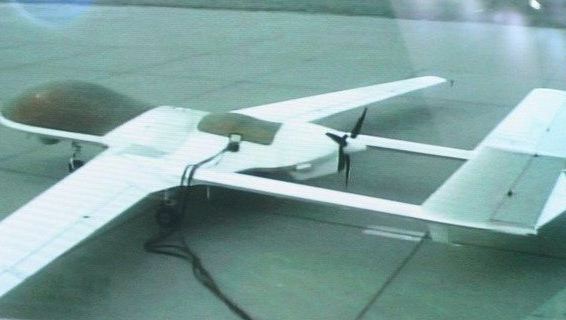

At Zhuhai International Airshow 2006, video and models were demonstrated to the public regarding this UAV. BZK-005 has a few stealth features integrated into its design. It is believed that a satellite data link antenna is held in its large upper body dome. Under the body there are optic-electric sensor systems. It is expected that BZK-005 has cruising speed of around 170 km/h, service ceiling 8,000 m, max takeoff weight is around 1,200 kg, max payload over 150 kg.
在2006年的珠海国际航展上,无人机的视频和模型向公众展示。 BZK-005型具有将几个隐形功能集成到其设计中。据认为卫星数据链天线被容纳在其大的身上部半球体中。机身下部有光电传感器系统。预计BZK-005型的巡航速度约为170公里/小时,实用升限为8000米,最大起飞重量约为1200公斤,最大载重超过150公斤。

In August 2011, a BZK-005 crashed into a farm field close to Xingtai, He Bei province. Photos of the wreckage were posted on various Chinese internet websites.
2011年8月,BZK-005型坠入河北省邢台市附近的农田中。残骸照片张贴在各种中国互联网网站上。


Specifications:
规格:

Endurance (hr): > 40
Cruise speed (km/hr): 150 – 180
Ceiling (km): 8
Normal operational altitude (km): 5 – 7
Max takeoff weight (t): 1.25
Payload (kg): 150
Launch and recovery: taxiing
Takeoff distance (m): 600
Landing distance (m): 500

续航力(HR):> 40 小时
巡航速度(公里/小时):150 - 180
最大升限(公里):8
正常操作高度(公里):5 - 7
最大起飞重量(T):1.25
有效载荷(公斤):150
发射和回收:滑行
起飞距离(米):600
着陆距离(米):500

补充资料:来源[百度百科]

BZK-005无人机是哈飞与北航联合设计的一种具有隐身能力的中高空远程无人侦察机系统飞行器。机身为以骨架承力为主的薄壁式结构。主要是由框、纵梁、地板、蒙皮、及整流罩等组成。

主要特点:集侦察、情报传输和火力打击于一身。

机身为以骨架承力为主的薄壁式结构。主要是由框、纵梁、地板、蒙皮、及整流罩等组成。机身受力骨架采用常规铝合金铆接结构,蒙皮及整流罩采用玻璃纤维、碳纤维、纸蜂窝等复合材料热模压成型。

该机采用螺旋桨推进式布局。
