| Type 344 Fire-Control Radar
中国344型火控雷达 Date:2010-03-20 Source:internet By:globalmil Viewed: |
Chinese Designation: Type 344
Export Name: MR34
NATO Reporting Name: N/A
Role: Fire-control for the 100mm gun and anti-ship missile targeting
Contractor: Xi'an Research institute of Navigation Technology
Band: I/J
Range: N/A

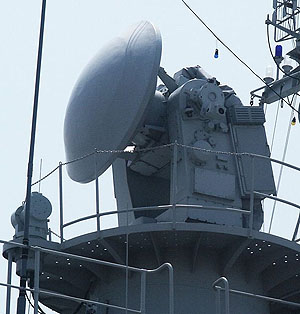

Description: The Type 344 radar is normally installed on top of the brigade right in front of the main mast. The radar is used as the standard fire-control radar on all post-1990 PRC-built destroyers and frigates for 100mm main gun and anti-ship missile targeting.
中国命名： 344型
外销命名： MR34型
北约代号： N/A
角色： 火控用于100毫米舰炮和反舰导弹瞄准
承包商： 西安导航技术研究所
波段： I/J
范围： N/A
描述： 344型雷达通常安装在主桅杆之前舰桥顶部右侧。雷达在1990年之后所有中国建造的驱逐舰和护卫舰当作一个标准火控雷达用于100毫米主炮和反舰导弹瞄准。
Last update: 13 May 2008
最后更新： 2008年5月13日
