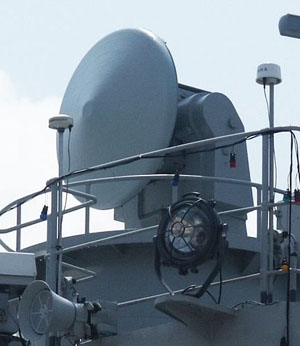

Type 347G (Rice Bowl) Fire-Control Radar

中国347G型（Rice Bowl）火控雷达

Date:2013-10-26 Source:internet By:globalmil Viewed:

Chinese Designation: Type 347G
Export Name: EFR-1
NATO Reporting Name: Rice Bowl
Role: Fire-control for the Type 76A dual-37mm AAA
Contractor: CETC
Band: I
Range: (2m2 RCS) 12km; or (0.1m2 RCS) 6km
Description: The Type 347G is believed to be based on the 1980s European (Italian) technology. The radar has been seen on many PRC-built surface combatants, in conjunction with the Type 76A dual-37mm AAA gun. Typically, the system consists of two Type 347G radars and four Type 76A guns on destroyers and frigates, and one radar and two AAA guns on smaller corvettes.

中国命名： 347G型
外销命名： EFR-1型
北约代号： “米筛”（Rice Bowl）
用途： 用于76A型双-37毫米AAA 火控
承包商： 中国电子科技集团公司（CETC）
波段： I
范围： （2平方米 RCS） 12公里；或 （0.1平方米 RCS） 6公里
描述： 347G型据信以1980年欧洲直升机公司（意大利）技术为基础。雷达已经在许多中国建造的水面战舰上被看到，连同76A型双-37毫米AAA炮。典型地，在驱逐舰和护卫舰上系统由二个347G型雷达和四门76A型AAA炮组成，在较小的轻护卫舰上由一个雷达和二门76A型AAA炮组成。

Last update: 13 May 2008
最后更新： 2008年5月13日
