| Type 341 (Rice Lamp) Fire-Control Radar
中国341型（Rice Lamp）火控雷达 Date:2013-10-26 Source:internet By:globalmil Viewed: |
Chinese Designation: Type 341
Export Name: N/A
NATO Reporting Name: Rice Lamp
Role: Fire-control for the dual-37mm AAA
Contractor: CETC
Band: I/J
Range: N/A

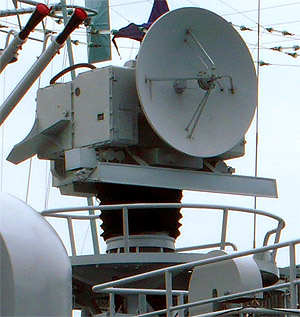

Description: The Type 341 was installed on the Jianghu-III/-V and Jiangwei-I/II class as a standard fire-control radar for the dual-37mm AAA guns. A complete system consists of one radar located on top of the rear mast and four AAA guns. On newer surface combatants this has been replaced by the more capable Type 347G (Rice Bowl).
中国命名： 341型
外销命名： N/A
北约命名： 谷灯
角色： 火控 用于双-37毫米 AAA
承包商： CETC
波段： I/J
范围： N/A
描述：341型安装在江卫-I/II和江卫-III/-V上当作一种标准的火控雷达用于双37毫米AAA炮。一套完整系统由一个位于后桅杆上的雷达和四门AAA炮组成。在比较新的水面战舰上已经被更有能力的347G型（米筛（Rice Bowl））代替。
Last update: 13 May 2008
最后更新：2008年5月13日
