Type 795 (Daxing Class) Training Ship

中国795型(大兴级)“郑和”号训练舰

Date:2013-10-26 Source:internet By:globalmil Viewed:

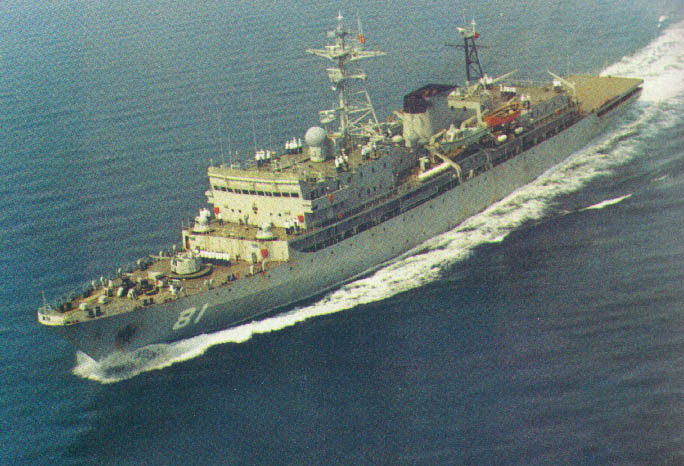

The Type 795 training ship Zheng He (hull No.81), also known as Daxin class by NATO, was the PLA Navy’s first purpose-built training ship. The vessel was launched in April 1987 at the Shanghai-based Qiuxin Shipyard and has been operated by the Dalian Ship Academy of the PLA Navy for the training of navy officer cadets. The vessel has made extensive long-distance cruises, including a good will visit to Hawaii in April 1989, a good will visit to Thailand in December 1990, and the operation to transport PRC’s UN peacekeepers to Cambodia in 1991.

795型训练舰“郑和”号(弦号 81),也即是北约代号大兴级,是PLA海军第一膄多用途训练舰。1987年4月在上海求新造船厂下水并且已经被PLA海军大连舰艇学院操作用于海军军官学员的训练。舰艇已进行了大规模长途巡航,包括在1989年4月到夏威夷访问,在1990年12月到泰国访问,在1991年进行运送中国联合国维和士兵到柬埔寨行动。

Designed specifically for long-distance voyage, Zheng He can cruise across half of the globe without requiring refuelling. The vessel has been fitted with weapon systems, air/surface radar, classrooms,  living and medical facilities and can support over 40 training subjects in navigation, observation, communications, electromechanics, and medical.

设计明确用于长途航行,“郑和”号能不需要补给巡航穿越半个地球。舰上已经配备武器系统、对空/表面雷达、教室、生活和医疗设备而且能支持超过40项航海、观通、通信、机电和医疗等训练课目。

Weapons

The vessel is armed with a Type 66 dual-57mm/70-calibre manual AAA gun, which can fire 2.80kg shells at a firing rate of 70 rounds/minute, to a maximum range of 5km against airborne target and 6km against surface target.

武器

舰上装备66型双联57毫米/70倍口径手动AAA炮,能以70发/分钟射速发射2.80公斤炮弹,最大射程对抗空中目标5公里和对抗水面目标6公里。

There are two Type 69 dual-30mm AAA guns (copy of the Soviet AK-230), with a firing rate of 360~400 rounds/minute and a maximum range of 4,000m against airborne targets. The AAA guns use radar and semi-automatic optical control.

有二座69型双联30毫米AAA炮(仿造苏联AK-230),具有360~400发/分钟的射速和对空目标最大射程4,000米。AAA炮采用雷达和半自动光学控制。

Two Type 81 six-barrel 240mm anti-submarine rocket launchers are installed on the bow deck. The rocket has a maximum range of 1,200m, and is armed with a 34kg warhead.

在艏甲板上安装二座81型六管240毫米反潜火箭发射器。火箭最大射程1,200米,装备34公斤弹头。

Sensors

The vessel has a Type 360S air/surface search radar operating at E/F-band, and an EH-5 hull-mounted search sonar.

传感器

舰载360S型空中/表面搜寻雷达在E/F-波段操作和EH-5壳体安装搜寻声纳。

Aviation

The vessel has a helicopter flight deck at stern to support a Z-8-size medium helicopter, with no hanger provided.

航空

在舰尾有一个直升飞机飞行甲板支援一架Z-8大小的中型直升飞机,然而没有提供机库。

Propulsion

The vessel is powered by two SEMT-Pielstick diesels rated at 7,200hp, with two shafts, giving a maximum speed of 17 knots.

推进

舰上动力由两台额定7,200马力的SEMT-Pielstick柴油发动机提供,采用双轴,提供17节最大航速。

Specifications

Displacement: (Full-load) 6,103 tonnes
Dimensions: Length 132.0m; beam 15.8m; draft 4.8m
Propulsion: 2X SEMT-Pielstick diesel, 7,200hp, two shafts
Speed: Maximum 17 knots
Range: N/A
Crew: 170 + 30 instructors + 200 cadets
Aviation: Aft helicopter deck, no hanger
Weapons: 1X Type 66 dual-57mm AAA; 2X Type 69 dual-30mm AAA; 2X Type 81 ASW rocket launcher

规格

排水量: (满载)6,103吨
尺寸: 长度 132.0米;宽 15.8米;吃水线 4.8米
推进: 2 X SEMT-Pielstick柴油发动机,7,200马力,双轴
速度: 最大值 17节
航程: N/A
组员: 170名+30名教官+200名军校学员
航空: 舰尾直升飞机甲板,没有机库
武器: 1 X 66型双联-57毫米AAA;2 X 69型双联-30毫米AAA;2 X 81型ASW火箭发射器

Last update: 30 June 2008
最后更新:2008年6月30日

补充资料:

1、《“郑和”号远洋航海训练舰》

“郑和”号,我国第一艘远洋航海训练舰,1987年4月在上海求新造船厂下水交付海军,划规大连舰艇学院管辖。1989年4月和1990年12月分别访问了美国夏威夷和泰国。可单舰环球半圈无须加油。舰上设有卫星导航仪和GPS全球定位系统等先进设备,以及全自动火炮、火箭深弹发射器等武器装备,教学、通信、机电、生活、医疗设施齐全,仅大型海图室就有三个,并设教学指挥中心和教学彩色电视闭路系统。在这艘舰上,学员可同时进行航海、观通、机电、武器、船艺、医疗等40多科目的实习训练。
