Type 067 (Yunan Class) Utility Landing Craft

中国067型(玉南级)通用登陆艇

Date:2013-10-26 Source:internet By:globalmil Viewed:

The Type 067 (NATO reporting name: Yunan class) is the 50-tonne utility landing craft introduced by Shanghai-based 708 Institute in 1962. The building contractors included Zhonghua Shipyard (now Hudong-Zhonghua Shipyard), Hangzhou Shipyard, and Qinhuangdao Shipyard. The first-of-class was launched in 1964. The improved Type 067-I was introduced in 1966. A total of 130 units of the Type 067 and Type 067-I were built for the PLA Navy.

在1962年位于上海的708所研制了50吨的067型(北约代号:玉南级)通用登陆艇。建造承包商包括中华造船厂(现在沪东-中华造船厂)、杭州造船厂和秦皇岛造船厂。该级第一艘在1964年下水。改良的067-I型在1966年研制。为PLA海军建造的067型和067-I型总数为130艘。

The Type 067 Yunan class utility landing craft has a conventional layout with a flat bow door. The craft is capable of carrying 1 tank, or 2 light vehicles, or 46t cargo.

067型玉南级通用登陆艇采用传统布局有一个艇艏平板门。登陆艇能够运送1辆重型坦克,或2辆轻型车辆,或46吨货物。

Weapons include two dual-14.5mm antiaircraft machine guns, or two Type 61 dual-25mm antiaircraft artillery guns.

武器包括二挺双联-14.5毫米防空机枪,或二座61型双联-25毫米高射炮。

The landing craft is driven by two 12V150 diesels rated at 600hp, giving a max speed of 12 knots.

登陆艇由二台额定600马力的12V150型柴油发动机驱动,提供最大12节航速。

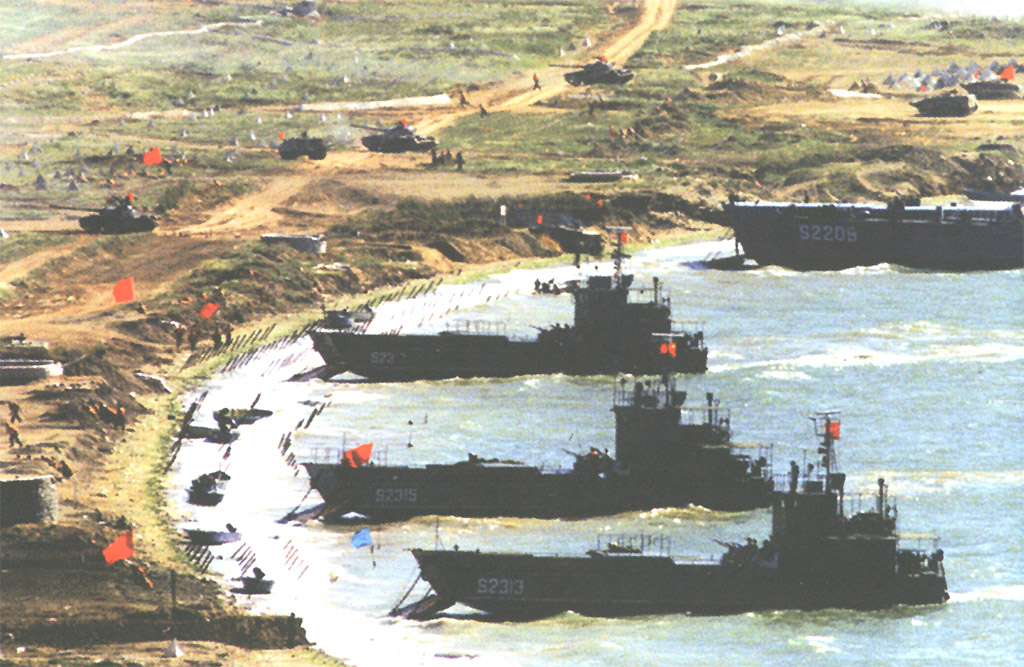

Type 067 landing crafts in amphibious assault exercise (Chinese Internet).067型登陆艇在两栖攻击演习中(中国英特网)

Specifications

Displacement: (full load) 128 tonnes
Dimensions: length 28.6m; beam 5.4m; draft 1.4m
Speed: 12 knots
Range: 500nm
Endurance: N/A
Crew: 10
Capacity: 1 tank, or 2 light vehicles, or 46t cargo

规格

排水量: (满载)128吨
尺寸: 长度 28.6米;宽 5.4米;吃水线 1.4米
航速: 12节
航程: 500海里
续航力: N/A
组员: 10名
能力: 1 重型坦克,或 2 轻型车辆,或 46吨货物

Last update: 21 June 2008
最后更新:2008年6月21日

补充资料:

1、“玉南”级(067型)小型多功能登陆艇,于1962年开始设计,主要用于在没有港口的内河和海岸实行两栖攻击和运送车辆、部队和货物。1964年第一艘艇下水,到70年代估计一共制造了280艘,成为当时解放军两栖力量的中坚。目前,大多数已经退役,只有约30~40艘仍在服役。

2、1962年,根据解放军总后勤部的要求,708研究所设计了配置专门液压开门机及尾锚机。可装载1辆重型坦克或2辆战车,一个分队,航速达l1节的067型小型登陆艇。该型艇于1964年在青岛建成首艇。
