PF98 is the 120mm recoilless anti-tank rocket developed by NORINCO for the PLA as a successor to the Type 78 and Type 65 recoilless gun. The weapon was designed to engage and destroy enemy tanks, armoured vehicles, hardened bunkers and fortifications. The weapon is equipped by the PLA ground forces at battalion and company levels to provide instant, direct fire support for infantry troops.

PF98式是一种120毫米无后座力反坦克火箭筒由中国北方工业公司（NORINCO）发展，用于替代78式和65式无后座力炮。武器设计去交战和摧毁敌人的坦克、装甲车辆、加固掩体和防御工事。武器被PLA地面部队在营和连级装备去提供迅速、直接火力支援给步兵部队。

Historically the PLA infantry relies on mass numbers of recoilless guns (Type 65 or Type 78) to provide rapid and flexible direct fire support to the front-line units in the battlefield when heavy supporting artillery or air support is not available for immediate response. These 1950s-era weapons are now showing their age in the 21st century battlefield. Therefore the PLA began to search for their successor in the 1990s. NORINCO introduced the Type 98 (PF98) recoilless rocket in the late 1990s. The weapon was initially revealed serving with the PLA garrison unit in Macao in 1999, with some other elite units beginning to receive the weapon after 2000.

在历史上当重型支援炮兵或空中支援无法即刻响应时PLA步兵依靠大量无后座力炮（65式或78式）提供迅速和灵活直接火力支援给战场上的前线部队。这些1950年-时代的武器在21世纪战场上已日益显现陈旧。因此PLA在1990年中期开始寻找它们的接替者。中国北方工业公司（NORINCO）在1990年后期生产了98型（PF98式）无后座力火箭筒。武器在1999年被最早发现提供给驻澳门的PLA卫戍部队，在2000年之后一些其它精锐部队开始接收武器。

The weapon was designed to fulfil the fire-range gap between the anti-tank guided missile (ATGM) and individual rocket-propelled launchers. The recoilless weapon design permits accurate delivery of a 120mm high-explosive (HE) or high-explosive anti-tank (HEAT) projectile with negligible recoil. The HEAT is said to have an armour penetration capability of 800mm. The weapon can be fired on a tripod, or on a soldier’s shoulder. The Type 98 is available in two variants; the battalion version and the company version, with the former carrying a primitive fire-control and the latter an optical sight. Both versions are equipped with night vision for the use at night.

武器设计去满足在反坦克导弹（ATGM）和单兵火箭助推发射器之间的火力射程间隙。无后座力武器设计允许精确递送一枚120毫米高爆（HE）或高爆反坦克（HEAT）火箭弹并具有可以忽略的后座力。HEAT据说具有800毫米穿甲能力。武器能装配在三脚支架上发射，或在士兵的肩上。98型现有二种型号；营级型和连级型，前者携带简易火-控系统和后者装配一个白光瞄准镜。两个型号均装备夜视系统用于在夜间使用。

Launcher

The rocket-propelled projectile is fired from a fibreglass-wrapped, reusable tube launcher which weights less than 10kg. The battalion version is fitted with a primitive fire-control system enabling a reaction time of 10 seconds from acquiring the target to firing. The tripod of the battalion version allows an elevation of +30 °~-6 °with a 360°traverse. The weapon is manually operated by 1~2 soldiers. The company version has a small fixed tripod to support the launcher when it is used in lower firing position.

发射装置

火箭弹从重量不超过10公斤的可重复使用玻璃钢内衬发射筒内发射。营级型配备有一套简易火控系统从瞄准目标到发射反应时间10秒。营级型的三脚架允许高低射界+30°~-6°和方向射界360°。武器由1~2名军人手动操作。当在较低的发射阵地时，连级型有一个小型固定三脚支架去辅助发射装置。

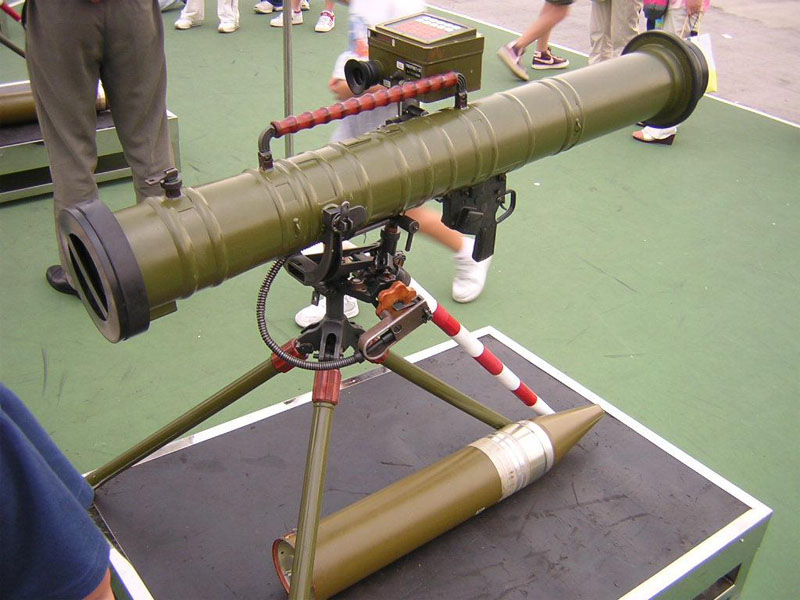

PF98 anti-tank rocket launcher (Chinese Internet).PF98式反坦克火箭发射筒（中国英特网）

Projectile

The Type 98 fires two types of 120mm calibre rocket-propelled projectiles: high-explosive anti-tank (HEAT) and high-explosive multipurpose.

发射体

98式发射两种型号120毫米口径火箭弹：高爆反坦克（HEAT）和高爆多用途。

The HEAT is armed with two tandem warheads and an electronic-controlled timer fuse. The round can pierce through MBT with reactive armour, and has an armour-piercing depth of about 800 mm (@90 degree) at a maximum firing range of 800m.

HEAT装备二级串联弹头和一个电子控制定时引信。弹药能穿透装有反应装甲的主战坦克（MBT），穿甲厚度800毫米（@90度）和最大射程800米。

The multipurpose round has a high-explosive warhead with 120 steel balls and incendiary materials, which is capable of piercing armour of 400mm thick (@55 degree) and kill the crew inside, or producing fragments to kill personnel within 25m of the point of impact. The maximum firing range is 1,800~2,000m.

多用途弹药的高爆弹头装有120粒钢珠和燃烧材料，有能力穿透400毫米厚装甲（@55度）并杀伤内部人员，或产生破片在冲击点25米内杀伤人员。最大发射距离1,800~2,000米。

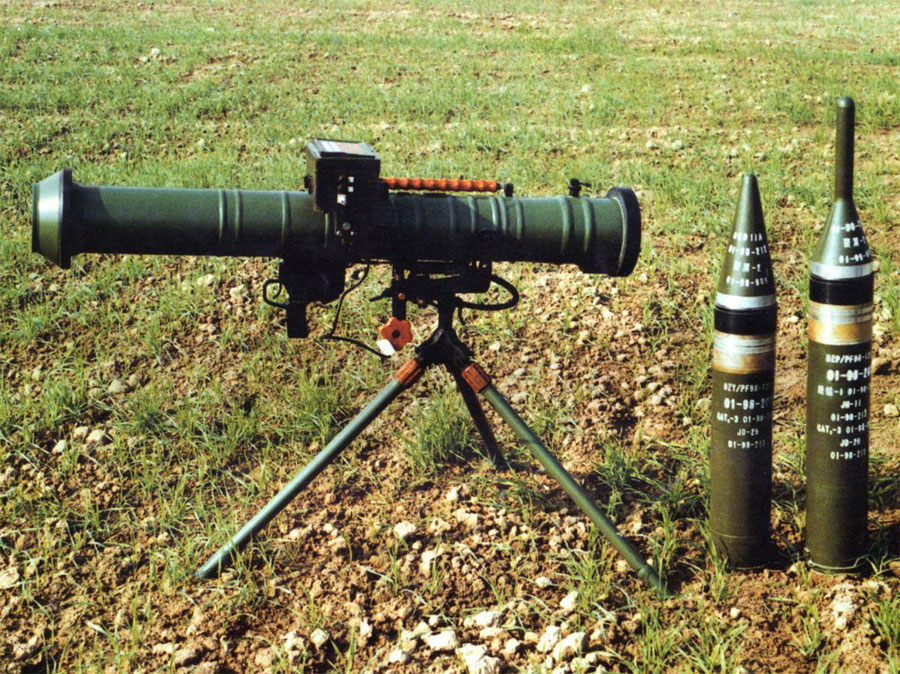

The multi-purpose round (left) and HEAT round (right) of the PF98 (Chinese Internet).PF98式的多用途弹药（左边）和高爆反坦克弹药（HEAT，右边）（中国英特网）

Fire-Control

The primitive fire-control of the battalion version Type 98 consists of an optical sight with night vision channel (500m range), a laser rangefinder, a fire-control computer and a LED display. The system can automatically capture the target range and complete the ballistic calculation, and then display the results on the LED display for the gunner. This greatly reduces the reaction time and increases the fire accuracy of the weapon.

火控

营级98型的简易火控由一个装有夜视信号通道（500米距离）的白光瞄准镜、一部激光测距仪、一部火控计算机和一个LED显示器组成。系统能自动地捕获目标距离并完成弹道计算，然后在LED上为炮手显示结果。这非常减少反应时间和增加武器的射击精度。

The company version Type 98 is fitted with an X4 telescope optical sight with a night vision channel (300m range). An electronic device calculates the lead of moving targets and put a light spot in the gunner’s optical sight.

连级98型装配有一个夜视通道X4望远镜白光瞄准镜（300米距离）。电子装置计算前进中的移动目标而且将一个亮点显示在炮手的白光瞄准镜上。

Specifications

Calibre: 120mm
Launcher length: 1,191mm
Launcher weight: N/A
Propulsion: Solid rocket motor
Range: 800m (HEAT); or 1,800m (HE)
Depth of penetration (static): 800mm (HEAT)
Rate of fire: 4~6 rds per minute
Projectile weight: 6.3kg (HEAT); 7.5kg (HE)
Field of fire: (Battalion version on tripod) Elevation -6°~+30°; Traverse 360°

规格

口径： 120 毫米
射程： 1,191 毫米
发射装置重量： N/A
推进： 固体火箭发动机
射程： 800 米（HEAT）； 或 1,800 米（HE）
穿甲深度： （静止） 800 毫米（HEAT）
发射速率： 一分钟 4~6 发
火箭弹重量： 6.3 公斤（HEAT）；7.5 公斤（HE）
射界： （在三脚支架上的营级型号）高低射界 -6 °~+30°；方向射界 360°

Last update: 25 August 2008
最后更新： 2008年8月25日
