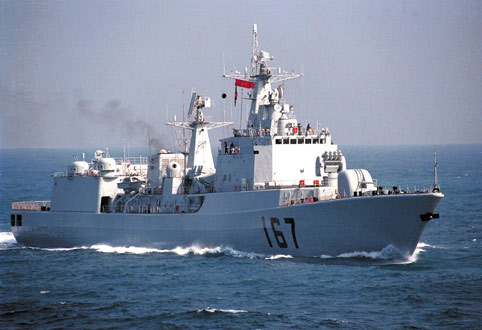

The Type 051B Luhai-class is a class of destroyer built by the People's Republic of China. It consists of only one ship, No.167 Shenzhen. When Shenzhen was commissioned into the People's Liberation Army Navy Surface Force in 1998, it was then, the largest surface combatant that China had ever built. It resembles in many ways an enlarged version of the Luhu-class destroyer, and is one of the first PLAN ships with a slope-sided hull to reduce radar signature. The 051B was succeeded by the domestic Type 052B, discounting the 4 Soviet built Sovremennyy-class destroyer China purchased in the interim.



Shenzhen was laid down by the Dalian Shipyard in May 1996. TheShenzhen was intended to be an experimental vessel with improvements over the Luhu-class' in terms of modular construction and stealth. The ship is powered by two indigenous steam turbine engines, due to Dalian Shipyard's experience in steam turbine construction and that Chinese domestic research and development on marine gas turbines had not yet matured. The displacement of the Luhai-class is 2,000 tons heavier than theType 052 destroyer, Luhu-class. Shenzhen was launched in 1997, although official revelation of the ship's existence did not come until the year following its commissioning. The chief designer of this class is academic, Mr. Pan Jingfu (潘镜芙), who is also the designer of both the Type 051B's predecessor and successor.



The main purpose of the Type 051B was to gain experience in modern naval ship design and construction, and refining the knowledge and skills accumulated from the earlier Type 052, such as integrating many different foreign subsystems on the Type 052 more effectively. The ship is powered by steam turbines due to the 1989 western arms embargo and that domestic gas turbines were not ready in time. The Type 051B also employed stealth construction techniques which resulted in a smaller radar cross section in comparison to its predecessor. Analysts speculated that the ship would have been equipped with an VLS system in the forward section for air-defense SAMs. However, when the ship was finally revealed, it was still armed with the 8-cell HQ-7 SAM launcher. These SAMs lack effectiveness against sea skimming missiles with multiple approaching angles. The PLAN was unsatisfied with the design and no further ships of the class were built. At the time, area air defence for the fleet was the PLAN's priority which older systems couldn't sufficiently provide, and since the capability couldn't be served by the final vessel the gap remained open. As a result, the decision to import two pairs of Sovremennyy-class destroyer from Russia was determined to fulfil the role.



The sole Type 051B destroyer 167 Shenzhen participated in the PLA Navy’s first goodwill visit to Africa in 2000, the first visit to Europe in 2001 and the first visit to Japan in 2007. In 2004, the ship received its mid-life modernization refit, with its original 100mm main gun and the HQ-7 air defense missile system being replaced by improved models.



Type 051B destroyer 167 Shenzhen visited Kochi, India for four days in August 2009, after deployment in the Gulf of Aden on anti-piracy operations.



In the 1st quarter of 2015, the sole 051B destroyer was spotted at the Zhanjiang naval base,[1] with all armaments and sensors removed. Initially it was unclear whether this is due to a refit or decommissioning. Images leaked at the end of December 2015 clearly show the 051B is going through a major refit. The original Type-381 (Sea Eagle C) radar has been replaced with Type 382 Radar (Sea Eagle S/C).[2] Helo hangar has been modified to carry a single Ka-28 ASW helicopter instead of the original dual Z-9 hangar.[3] Two Type 1130 CIWS have been installed above the Helo hangar,[4] one covering each side, replacing the old Type 76A 37 mm guns.[5] Four Type 345 (MR-90 Front Dome) radars have been installed,[3] indicating the destroyer will likely be fitted with a number of vertical launch system cells for HQ-16 SAMs in place of the eight-unit HQ-7 SAM launcher. The main Type 79 twin 100 mm gun is also being replaced, either with a H/PJ-26 76 mm or H/PJ-38 130 mm gun. The upgrades give the Type 051B weapon and sensor capabilities similar to the Type 054A frigate.

Ships of Class



General characteristics

Displacement: 6,100 tons

Length: 153 m

Beam: 16.5 m

Draught: 6 m

Propulsion:

2 Steam turbines

94,000 shp (70,100 kW)

Speed: 31 knots (57 km/h; 36 mph)

Range: 14,000 miles

Complement: 250 (40 officers)

Sensors and processing systems:

Combat data system - ZKJ-6 Information processing system designed by the 709th Institute (Reported speed: 10 Mbit/s)

Data link: HN-900 (Chinese equivalent of Link 11 A/B, to be upgraded)

Communication: SNTI-240 SATCOM

Rice Shield 3-D air search radar

Type 360S air/surface search radar

Type 344 fire-control radar (for 100 mm gun & SSMs)

Armament:

16 anti-ship missiles

16 HQ-7 surface-to-air missiles (8 ready to fire + reload)

1 dual 100mm gun

4 dual-37mm anti-aircraft guns

6 torpedo tubes

2 anti-submarine rocket systems

Aircraft carried: 2 helicopters: (Kamov Ka-28 or Harbin Z-9C)

Aviation facilities:

Hangar accommodating 2 helicopters

Landing platform for one helicopter

Helicopter landing system

舰艇类型

一般特征
排水量：6100吨
长度：153米
艇宽：16.5米
吃水：6米
推进装置：
2台蒸汽涡轮机
94000马力（70100千瓦）
航速：31节（57公里/小时；36英里）
航程：14000英里
满员：250名（40名军官）
传感器和处理系统：
作战数据系统-ZKJ-6型信息处理系统由第七百零九所设计（据报告的速度：10兆位/秒）
数据链：HN-900型（中国的相当于11 A/B数据链，进行升级）
通讯：SNTI-240卫星通信
三维空中搜索雷达
360S型空中/水面搜索雷达
344型火控雷达（用于100毫米舰炮和导弹）
武器装备：
16枚反舰导弹
16枚HQ-7地空导弹（8枚准备射击+重装）
1座双100mm舰炮
4 座双-37毫米高射炮
6具鱼雷发射管
2具反潜艇火箭系统
舰载飞机：2架直升机：（Ka-28或哈尔滨Z-9C）
航空设施：
机库可容纳2架直升机
一架直升机降落平台
直升机降落系统
