Tail Sitter

以色列Tail Sitter无人机

Date:2016-02-04 Source:Israeli_weapons By:Globalmil Viewed:

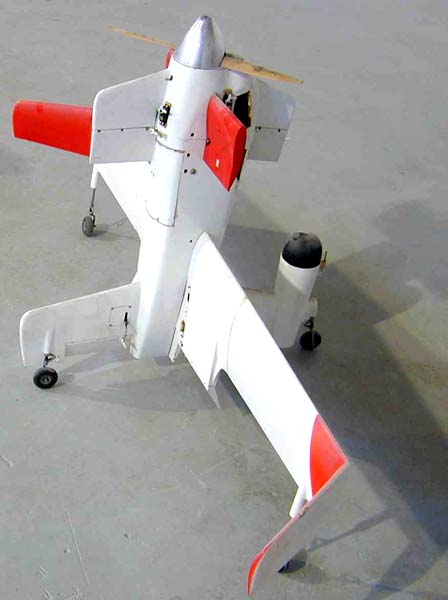

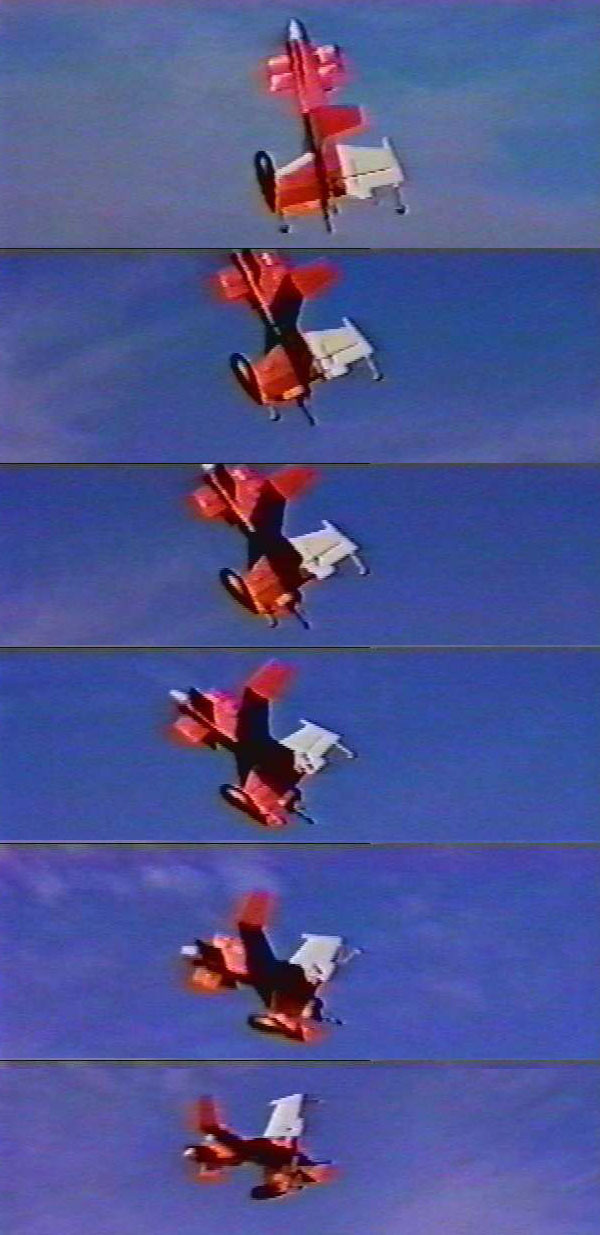

The Tail-Sitter UAV is a V-TOL platform developed by Aeronautics around 2000. It was designed to perform the unique flight profile of vertical Take-off and Landing, air rotation, and horizontal flight. The Tail-Sitter's flight profile combines the advantages of taking-off and landing in rough/crowded/field/urban conditions, and the endurance/range of horizontal flying platforms.
Tail Sitter(尾部垂地)无人机被航空业在2000年开发的一种V-TOL(垂直起降)平台。它被设计独特的飞行翼形实现垂直起飞和降落,空中旋转和水平飞行。Tail Sitter的飞行翼形兼备在粗糙/拥挤/场地/城市垂直起飞和降落的优越性,和水平飞行平台的续航力/航程。

Guidance:
UMASTM avionics: real time UAV and payload control Full autonomous navigation and in-flight programmable navigation Cemera guided navigation

导航:
umastm航空电子设备:实时的无人机和载荷控制全自主导航和飞行中可编程导航、摄影机指引导航

Engine(发动机)
40 HP
Wing span(翼展)
10 ft (3m)
Height overall(总体高度)
6.6 ft (2m)
Max Payload(最大负载)
33 Ib (15kg)
Launch Weight(起飞重量)
220 Ib (100kg)
Max level speed(最大水平速度)
150 Kt
Service Ceiling(实用升限)
22,000 ft
Max Endurance(最大续航力)
3h
Datalink, comm frequency(数据链,通信频率)
2 RF command uplinks
and real-time imagery down-link.
2 RF 命令上行链和实时图像下行链
