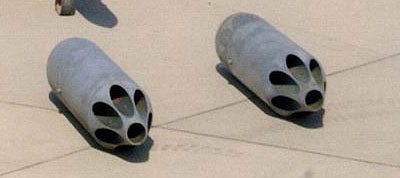

90mm Air-Launched Rocket Pod

中国90毫米空射火箭巢

Date:2010-04-07 Source:internet By:globalmil Viewed:

Specifications

Length: 1.25m
Calibre: 90mm
Stablising fins: 4
Wingspan: N/A
Launch weight: 14.6~17.1kg
Warhead: 4.8~5.6kg, HE, fragmentation, Incendiary
Propulsion: Four-nozzle solid rocket motor
Maximum speed: Mach 2
Range: 7,000m
Launcher pod: 7 tubes

规格

长度: 1.25 米
口径: 90 毫米
稳定翼: 4
翼展: N/A
发射重量: 14.6~17.1 公斤
弹头: 4.8~5.6 公斤,高爆,破片,燃烧
推进: 四喷嘴固体火箭发动机
最大速度: 2 马赫
射程: 7,000 米
发射巢: 7 管

Last update: 5 November 2006
最后更新: 2006年11月5日
