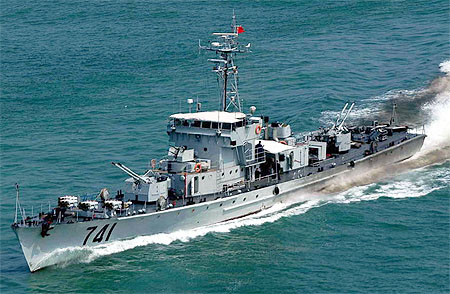

Type 037 (NATO reporting name: Hainan class) is the anti-submarine patrol craft (also known as submarine chaser or sub-hunter) introduced in the 1960s. Originally designed for the anti-submarine warfare (ASW) role, the versatile vessel has actually been used for a wide range of duties, including offshore patrol, escorting, surveillance, and mine laying. A total of over 126 examples were built between mid-1960s and mid-1980s, with 99 hulls commissioned by the PLA Navy. The vessel was also exported to Cambodia, Pakistan, Bangladesh, Egypt, Burma, and North Korea.

037型（北约代号：海南级）是在1960年生产的反潜巡逻艇（也称为submarine chaser或sub-hunter）。本来设计用于反潜战（ASW）角色，多功能舰艇已经实际上用于广泛职责，包括近海巡逻、护卫、监视和布设水雷。在1960年中期和1980年中期之间建造总数超过126艘，99艘进入PLA海军服役。舰艇也被输出到高棉、巴基斯坦、孟加拉、埃及、缅甸和朝鲜。

As the Type 6641 (Chinese copy of the Soviet Type 201 OS-1 class) patrol craft was incapable of supporting the PLA Navy’s ongoing conflicts with the Nationalist navy in the Taiwan Strait and South China Sea in the late 1950s, a larger patrol craft with increased speed, seaworthiness and firepower was desperately required. In 1959, the PLA Navy organised its effort to replace the Type 6641 with an indigenously developed patrol craft of same class. 701 Institute finished the development of the Type 037 patrol craft in 1961, and the construction began in August 1962.

6641型（苏联201 OS-1级的中国仿造型）巡逻艇在1950年后期无力支援PLA海军在台湾海峡和南海持续不断的冲突，具有增强航速、适航和火力的较大巡逻艇是非常需要的。在1959年，PLA海军组织它的力量以本国发展的巡逻艇去替代6641型。701所在1961年完成了037型巡逻艇的发展，而且建造从1962年8月开始。

The first hull (pennant number 278) was built by Dalian Shipyard using Soviet-supplied components. The hull was then transported to Guangzhou-based Huangpu Shipyard in southern China by railway for system installation. No.278 boat was launched on 17 December 1963 and later transferred to Yulin naval base in Hainan Island for operational trial. The boast was officially commissioned by the South Sea Fleet on 16 November 1964. The second hull No.279 also built by Dalian Shipyard using Chinese-built components and Soviet-made diesel engines was launched in July 1965. From the third hull the construction was carried out by the Guangzhou-based Huangpu Shipyard independently.

第一艘（弦号278号）由大连造船厂使用苏联供应的部件建造。艇体然后从铁路运送到中国南部广州建立的黄埔造船厂进行系统安装。被编号278在1963年12月17日下水和稍后被转移到位于海南岛的榆林海军基地用于海试。该艇正式地在1964年11月16日进入南海舰队服役。第二艘编号279在1965年7月大连造船厂使用中国制造的部件和苏联制造的柴油发动机建造下水。从第三艘起艇体建造被广州建立的黄埔造船厂独立进行。

In late 1966, Shanghai-based Qiuxin Shipyard also began to build the Type 037 patrol craft for the North Sea Fleet and East Sea Fleet. In 1972, Qingdao Shipyard in northern China became the third shipyard involved in the Type 037 production. The vessel was certified for design finalisation in February 1975. In its peak time, the Type 037 production was carried out at four shipyards (Chongqing, Qingdao, Qiuxin, and Huangpu) simultaneously. A total of 126 hulls were built, including 121 examples in the basic patrol craft variant, 2 in the rescuing boat variant, and 3 in the hospital boat variant. A total of 10 boast were donated and 12 exported to foreign navies. 99 boasts were commissioned by all three fleets of the PLA Navy. Some of these may have been scrapped or converted into transport boats.

在1966年后期，上海建立的求新造船厂也开始为北海舰队和东海舰队建造037型巡逻艇。在1972年，在中国北部的青岛造船厂变成第三个造船厂积极参与037型制造中。037型在1975年2月进行设计定型鉴定。在它的高峰期，建造同时地在四个造船厂（重庆、青岛、求新和黄埔）实行。建造总数为126艘，包括121艘基本型巡逻艇，2艘救生艇改型，和3艘医疗艇改型。总数为10艘被赠送和12艘被外销到外国海军。99艘进入PLA海军所有的三个舰队服役。其中一些可能已经报废或改成运输艇。

Design

The Type 037’s hull has a very basic all metal structure. The forward superstructure has three levels, with the ammunition store and crew quarters on the lower level; navigation, radar, and sonar rooms on the middle level, and an open-top bridge on the upper level. The lower level of the superstructure extends forwards beyond the two upper levels, providing space for a 25mm AAA gun located on its top. To achieve high-speed performance, the ship designers had to sacrifice the living conditions of the crew to give enough space for the engine room to accommodate four diesel engines.

设计

037型是非常基本的全金属结构。前部的上部构造有三层，军火舱和乘员舱在低层；导航、雷达和声纳舱在中层和敞开舰桥在上层。上部构造的低层向前延伸超出二个上层，为位于其顶部的一门25毫米AAA炮提供空间。为了要实现高速性能，设计者必须牺牲乘员的生活条件去给轮机室提供充足空间容纳四台柴油发动机。

Weapons

The vessel is equipped with four RBU-1200 (or its Chinese copy Type 62) ASW rocket launchers, each with five 250mm launch tubes in two rows (3 on top, 2 at bottom). The manually-reloaded launcher has an effective range of 400~1,450m. Each rocket weights 71.5kg and is fitted with a 32kg warhead. The rocket is fitted with a KDV fuse which detonate on impact with the submarine hull or time-delay. The rocket is effective in 10~300m depth, and has a blast radius of 5m.

武器

巡逻艇装备四具RBU-1200（或它的中国仿制62型）反潜战（ASW）火箭发射装置，每个装有五管双排250毫米发射管（3个在上部，2个在底部）。手动装填发射装置有效射程400~1,450米。每枚火箭重量71.5公斤和装配一个32公斤弹头。火箭配备有KDV触发定时引信能碰撞潜艇外壳或延时爆炸。火箭有效深度10~300米，爆炸半径5米。

There are two BMB-2 (or its Chinese copy Type 64 ) 432mm depth charge (DC) projectors installed on the stern deck. The fixed projectors, which are angled at 45 degrees in elevation, can launch DCs to either 40m, 80m, or 120m range. The 165kg DC has a 135kg warhead, and is effective in the depth range of 10~330m. Additionally there are two DC racks on the ship stern, with 18 DCs. For mine warfare missions, the Type 037 is also fitted with two stern mine rails and can carry 8~12 mines.

在尾甲板装有二座BMB-2型（或它的中国仿制64型）432毫米深水炸弹（DC）投放器。固定位置投放器，以仰角45度角，能任一40米、80米或120米射程发射深水炸弹。深水炸弹165重量公斤弹头135公斤，而且有效深度范围10~330米。另外在艇尾部上的二个深水炸弹支架，带有18枚深水炸弹。对于水雷战任务，037型也配备有二个尾部布雷导轨和能携带8~12枚水雷。

In addition to its ASW armaments, the Type 037 is also equipped with a large number of artillery guns, consisting of two Type 61 twin-25mm/60-calibre AAA guns (270 rounds/min, 3km against airborne targets, shell 0.34kg) and two Type 66 twin-57mm/70-calibre AAA guns (70 rounds/min, 6km against surface targets and 5km against airborne targets, shell 2.80kg). These provide the vessel with intensive firepower against both surface and airborne targets.

除了它的反潜战（ASW）装备，037型也装备很多的火炮，由二座61型双管-25毫米/60倍口径的AAA炮（270发/分钟，防空目标3公里射程，炮弹0.34公斤）和二座66型双管-57毫米/70倍口径的AAA炮（70发/分钟，射程对水面目标6公里和防空目标5公里，炮弹2.80公斤）。这些提供猛烈的防水面和空中目标火力。

Electronics

The vessel is fitted with a Soviet Tamir II hull-mounted high-frequency sonar (or indigenous SJD-3 on later units). A 'Top Plate' surface search radar is fitted on the top of the mast.

电子设备

037型配备有苏联Tamir II艇身安装高频声纳（或在较后来的单位本国SJD-3型）。在桅杆顶端上安装一部“顶板”（Top Plate）水面搜寻雷达。

Propulsions

The propulsion system consists of four diesels rated at 10,000hp. The vessel has four shafts which give a maximum speed of 29 knots.

推进

推进系统由额定10,000马力的四台柴油发动机组成。四轴驱动提供29节的最大航速。

Specifications

Displacement: (standard load) 375t; (full load) 392t
Dimensions: Length 58.8 m; Beam 7.2m, Draft 2.2m
Propulsion: 4X Type 9-D-8 diesel, rated at 4,000hp sustained, four shafts
Speed: Maximum 30.5 knots; Economic: 15 knots
Range: 1,300nm @ 15 knots
Crew: 78
Radar: (Surface search) 'Top Plate', or 'Port Head', or 'Skin Head', E/F-band
IFF: 'High Pole'
Sonar: Tamir II, hull-mounted high-frequency (Indigenous SJD-3 on later units); Thomson Sintra SS 12 VDS (some units)
Guns: 2 X Type 66 dual-57mm/70-calibre AAA gun (one front, one rear); firing 6.31kg shells at 70 rounds/min; effective range 5km against airborne targets and 6km against surface targets; 2 X Type 61 dual-25mm/60-calibre AAA guns, firing shells at a rate of 800~900 rounds/min to a range of 2,700m
ASW Rocket: 2 X Type 65 (RBU-1200) 5-tube ASW rocket launcher, range 400~1,450m; warhead 32kg
Depth charge: 2 X Type 64 (BMB-2) DC projector; 2 X DC racks
Mines: 2 X rail, 8~12 mines

规格

排水量： （标准负载）375 吨；（满负载）392 吨
尺寸： 长度 58.8 米；宽 7.2 米；吃水线 2.2 米
推进： 4 X 9-D-8型柴油发动机，额定持续4,000马力，四轴
航速： 最大 30.5 节；经济 15 节
航程： 1,300 海里@15 节
组员： 78 名
雷达： （水面搜索）‘顶板’（Top Plate），或‘Port Head’，或‘皮头’（Skin Head），E/F-波段
敌我识别（IFF）： ‘高杆’（High Pole）
声纳： Tamir II，艇身安装高频（在较后的单位上本国SJD-3型）；汤姆森Sintra SS 12 VDS型（一些单位）
火炮： 2 X 66型 双管-57 毫米/70倍口径AAA炮（一座前部，一座后部）；以70发/分钟发射6.31公斤炮弹；有效射程对抗空中目标5公里和对抗水面目标6公里；2 X 61型双管-25 毫米/60倍口径AAA炮，炮弹射速800~900发/分钟射程2,700米
ASW火箭： 2 X 65型（RBU-1200）5管ASW火箭发射装置，射程400~1,450米；弹头32公斤
深水炸弹： 2 X 64型（BMB-2） DC投放器；2 X DC支架
水雷： 2 X 导轨，8~12 水雷

Last update: 1 March 2009
最后更新： 2009年3月1日
