I-View

以色列I-View无人机

Date:2010-01-24 Source:israeli-weapons By:globalmil Viewed:

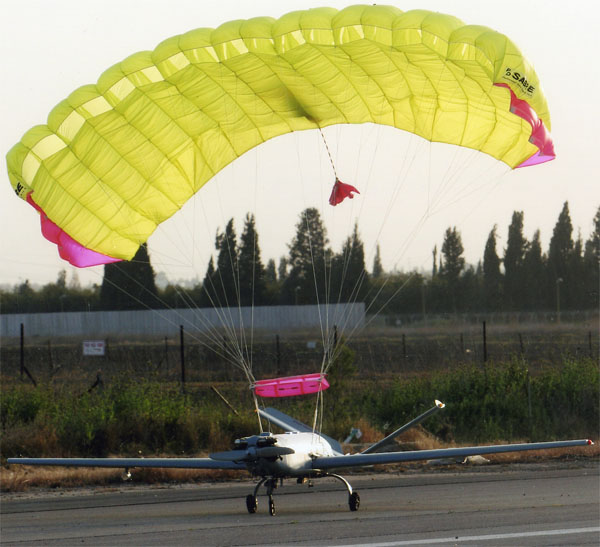

The I-View System is a close-range UAV system intended for the tactical echelon level. The I-View uses automatic catapult assisted launch and automatic precision parafoil recovery and therefore does not require a runway. These features make the I-View UAV System most suitable for front-line, battlefield operations.

 I-View系统是一种近程无人机(UAV)系统用于战术等级层次。I-View使用自动弹射器辅助发射和自动精确翼伞回收并且因此不需要一条跑道。这些特点使I-View无人机(UAV)系统最适合用于前线、战场操作。

Missions

The I-VIEW UAV System is the ideal solution for close-range surveillance, reconnaissance, target-acquisition and artillery adjustment missions.

任务

I-VIEW无人机(UAV)系统是理想的解决办法用于近-距离监视、侦察、目标捕获和火炮调校任务。

Datalinks

Direct Line-of-Sight (LOS) data link
Real-time command uplink
Real-time data and video downlink

数据链

直接瞄准线(LOS)数据链
实时指令上行链路
实时数据和视频下行链路

Payloads

Electro Optical POP (TV and IR Combo)
Customer furnished payloads

负载

光电POP(TV和IR组合)
客户配备负载

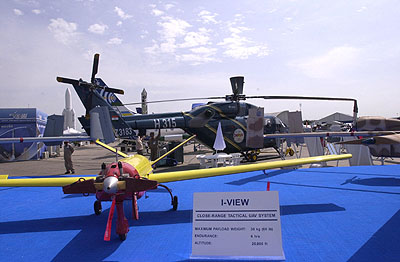

I-VIEW Specifications

Max Range   50-80 km
Endurance   4-6 hours
Max Altitude   15,000-22,000 ft

 I-VIEW规格

最大航程: 50-80 公里
续航力: 4-6 小时
最大高度: 15,000-22,000 英尺

Technical Data

Max Take-off Weight 125-165 kg
Max Payload Weight 20-30 kg
Wing Span   5.70 m
Overall Length   4.10 m

技术数据

最大起飞重量: 125-165 公斤
最大负载重量: 20-30 公斤
翼展: 5.70 米
全长: 4.10 米
