Micro-V

以色列Micro-V无人机

Date:2020-12-07 Source:israeli-weapons By:Globalmil Viewed:

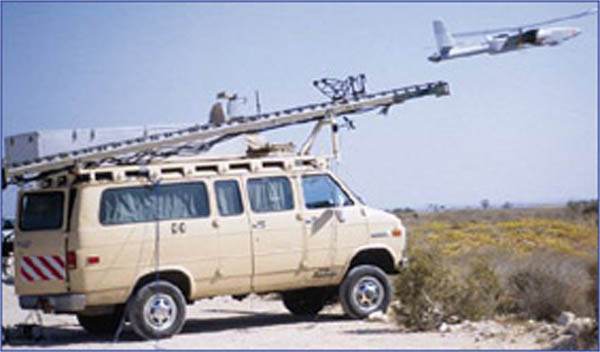

This Israeli design is meant to be used by commanders down to company level. It is lightweight, lacking in many of the refinements of larger UAVs, but is cheap and able to be easily operated. It is launched by a bungee catapult from a small vehicle such as a HMMWV or Land Rover, and parachute-landed. It can provide valuable information about the enemy without exposing friendly troops to danger.
这是以色列设计必须被指挥官下至连层次。它是轻型、缺少较大无人机(UAV)的许多精细,但是便宜和能够容易地操作。它从一种小型车辆,像是一辆HMMWV或“兰德·路华”(Land Rover)上的一部弹簧弹射器上发射和降落伞-着地。它能提供关于敌军的有价值信息,不使友军暴露在危险前。

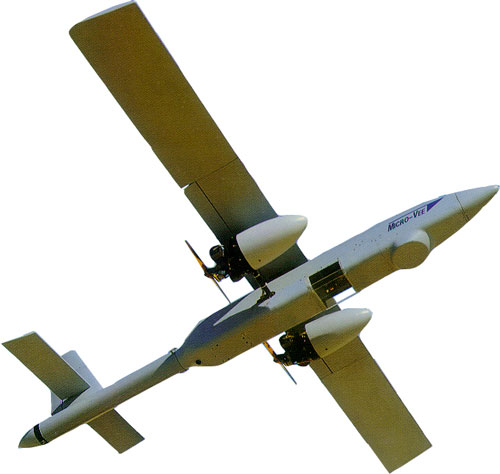

The Micro-V is a neat little mini-UAV, powered by twin 3 kW (4 horsepower) piston engines, one in a nacelle on each wing driving a pusher propeller. It has no landing gear. The Micro-V appears to be too small to carry a full sensor turret, carrying a miniaturized imager in a transparent section built into the middle of its fuselage.
Micro-V是一种灵巧的、很小的迷你-无人机(UAV),由双3千瓦(4马力)活塞发动机提供动力,在每个机翼上的一个飞机发动舱中驱动一部推进螺旋浆。它没有起落架。Micro-V去携带一套完整的传感器转塔看来太小,一套小型化图像装置在机身中部安装的透明部件内。

Micro-V is Surveillance & Reconnaissance Tactical UAV Twin engine 8 hp total, 50 kg take of weight, 8 kg of payload, 5 hrs endurance, up to 15,000 ft. altitude and 50 km range. Field operation with point launch and recovery.
Micro-V是监视&侦察战术无人机(UAV),双发动机全部功率8马力,50公斤重量,8公斤负载,5个小时续飞时间,最大达到15,000英尺高度和50个公里航程。室外操作和点发射和回收。


    System Configuration
    系统配置

    GW: 55Kg, Span: 3.6m, Ceiling: 13Kft, Endurance: 5h.
    Ground Control Station (GCS)
    3 crated Mini-V air vehicles
    Bungee launcher
    Ground Data Terminal (GDT)
    Ground Support Equipment (GSE) The complete system is housed in a single mobile vehicle
    总重: 55 公斤,翼展: 3.6 米,升限: 13 千英尺,续飞时间: 5 小时。
    地面控制站(GCS)
    3架板条箱装迷你- V飞行器
    弹簧发射装置
    地面数据终端(GDT)
    地面支援设备(GSE)全部系统在一辆单独的机动车辆上

    Main Features
    主要功能

    Real time day or night video information
    Autonomous flight with in flight redirection
    Advanced avionics
    Field launch and parachute recovery
    Operated and maintained by a two man crew
    实时昼或夜视频信息
    自主飞行具有在飞行中改变方向
    先进的航空电子装置
    场地发射和降落伞回收
    两名组员操作和维护
